What Is Difference Between 45 Degree Elbow And 90 Degree Elbow?

There are many models and types of pipe fittings, and the function of the elbow is to change the path of the pipe. 45-degree and 90-degree elbows represent elbow fittings with different bending angles.

Here are the main differences between 45-degree elbows and 90-degree elbows:

Aspects of pipe fitting angles:

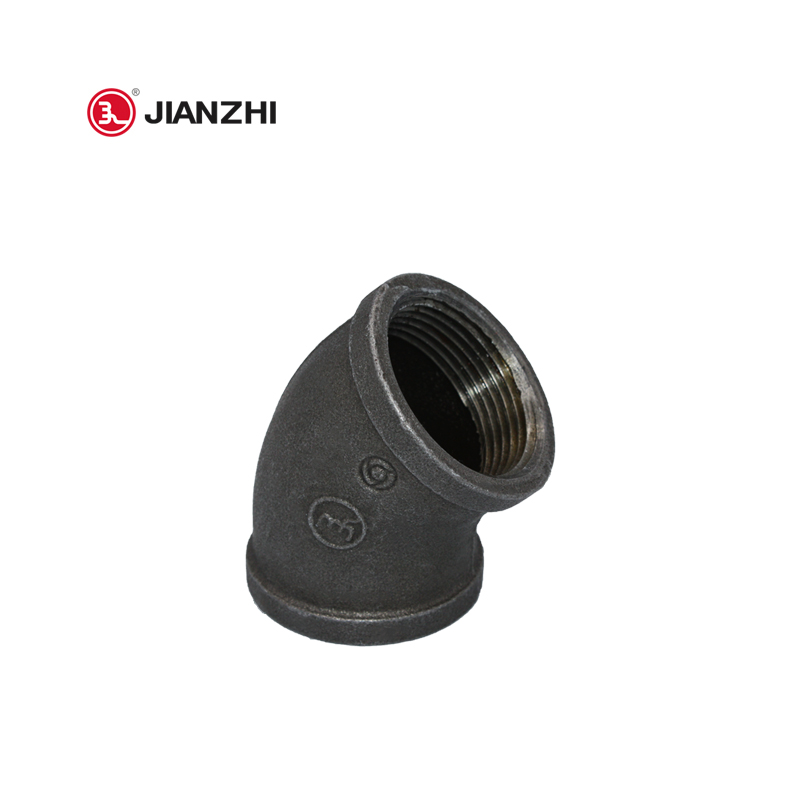

45 Degree Elbow: This type of elbow has a 45 degree bend. This means that the fitting has changed 45 degrees from its original orientation

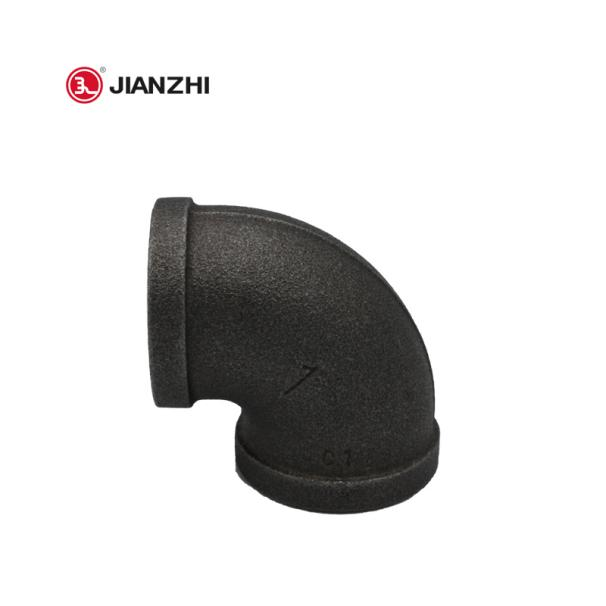

90 Degree Elbow: This type of elbow has a 90 degree bend. This means that the fitting changes 90 degrees from its original orientation. The pipe changes direction at a right angle, making the turn sharper than a 45 degree elbow.

JIAZNHI PIPE FITTINGS

Turning radius:

45-degree elbow: The turning radius of a 45-degree elbow is larger than that of a 90-degree elbow. The curvature is not large and the direction change is 45 degrees.

90-degree elbow: The turning radius of a 90-degree elbow is small and presented in the form of a right angle, resulting in a drastic change in direction.

JIAZNHI PIPE FITTINGS

Smoothness of liquid flow in pipelines:

45-degree elbow: 45-degree elbows are typically used when liquids or gases need to turn gradually. Liquids and gases have less impact on the pipe wall than a 90-degree elbow.

90-degree elbow: 90-degree elbow is usually used when liquids and gases need to turn at right angles. They cause greater flow resistance and greater impact on the pipe wall than 45-degree elbows.

application:

45 Degree Elbows: These are typically used in applications where smoother fluid flow is required, such as pipes where gradual changes in direction are preferred.

90-degree elbow: Typically used when a sharp change of direction is required and space constraints may require a tighter turn.

The choice of a 45-degree elbow or a 90-degree elbow depends on the specific design requirements of the pipe or duct system, which takes into account the space available, the materials being transported within the pipe, the angle required and the direction of the angle.
