Malleable Cast Iron vs Ductile Cast Iron

Malleable Cast Iron and Ductile Cast Iron are two different types of cast iron materials with a number of differences in terms of organisation, properties and applications.

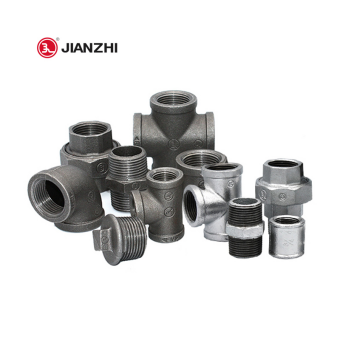

JIANZHI Malleable iron Pipe Fittings

1. Organisation: The basic organisation of malleable cast iron is cast pearlite (ferrite), and after the heat treatment process (annealing), the ferrite particles form flakes of pearlite, giving it malleability. In contrast, the basic structure of ductile cast iron is ductile, in which spherical particles of graphite are embedded in the iron matrix, giving it a higher toughness and ductility.

2. Mechanical properties: malleable cast iron is relatively brittle, with higher strength and hardness but lower toughness. Ductile iron has better ductility and ductility, and is relatively weak compared to malleable cast iron, but has higher impact and tensile toughness.

3. Processing performance: malleable cast iron has good malleability, easy plastic deformation and forming process, suitable for cold forging, hot forging and mechanical processing. Ductile iron is not easily malleable, but can be machined, milled and cut.

4. Application areas: Malleable cast iron is commonly used for applications requiring high pressure and impact loads due to its high strength and hardness, such as piping systems, connections and mechanical components. Ductile iron, due to its excellent toughness and creep resistance, is commonly used for applications requiring high toughness and creep resistance, such as automotive parts, bridge structures and construction machinery.

In general, there are significant differences between malleable and ductile cast iron in terms of organisation, mechanical properties, machining properties and areas of application. The selection of the right cast iron material for the specific application needs and material performance requirements is essential to ensure the performance and reliability of the product.

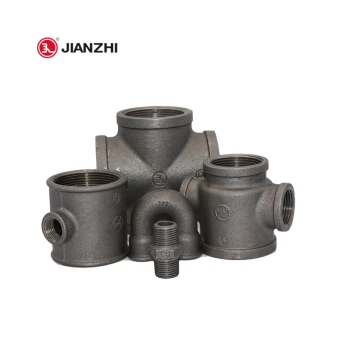

JIANZHI Malleable iron Pipe Fittings
