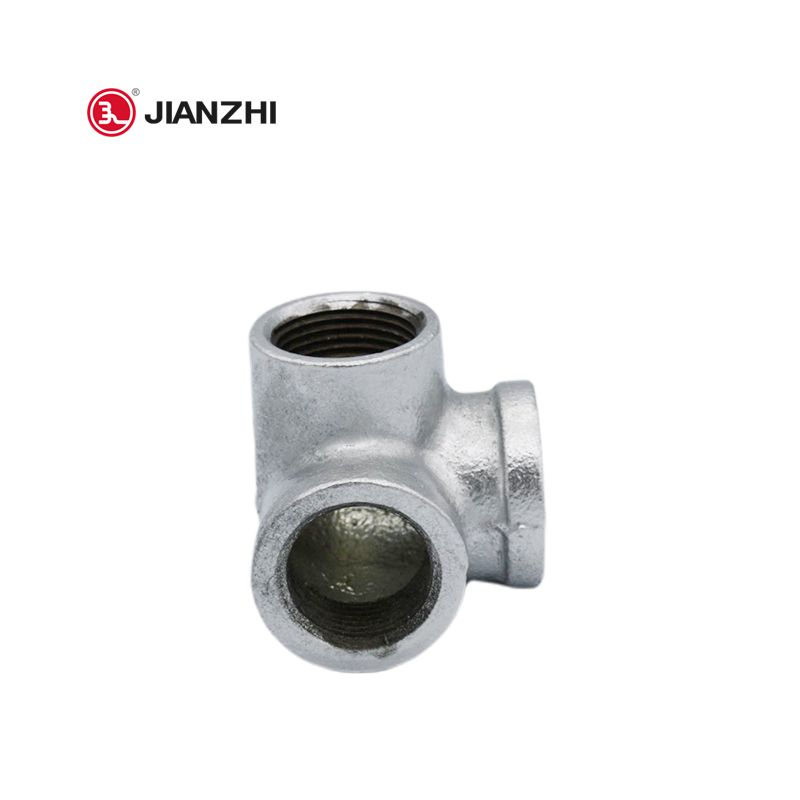

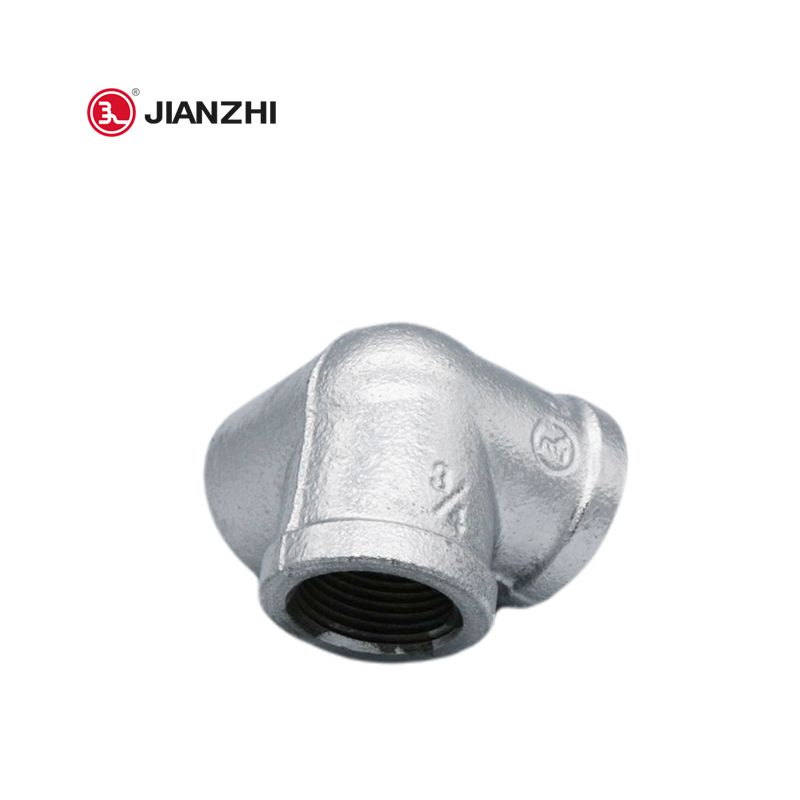

Threaded Pipe Fittings Side Outlet Elbow Fig.1221

Size: 1/8''-6''(DN6-DN150)

Standard: EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242

Threaded Standard: EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226

Work Pressures: PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar

UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI

Threaded Pipe Fittings Side Outlet Elbow Fig.1221

Inquire Now

Product Description

Maximum Pressure: 25 BAR (363PSI) (2.5MPA) CLASS 150

Maximum Temperature: 200°C (392°F)

Tensile Strength: 350MPA

Hardness: HB150 (Brinell)

Elongation Rate: 10%

Suitable Applications: Water, Oil, Gas, Petro-Chemical

Material: Malleable Iron

Everyone knows that fittings are a necessary part when assembling any plumbing system. Having made a quality repair once, choosing high-quality parts, you will forget about water supply problems for many years. Despite the fact that the use of cast iron communications is a thing of the past, cast iron fittings are still widely used in pipeline construction. Their everlasting popularity is due to the long service life of 60 to 80 years, and the high strength of the material.

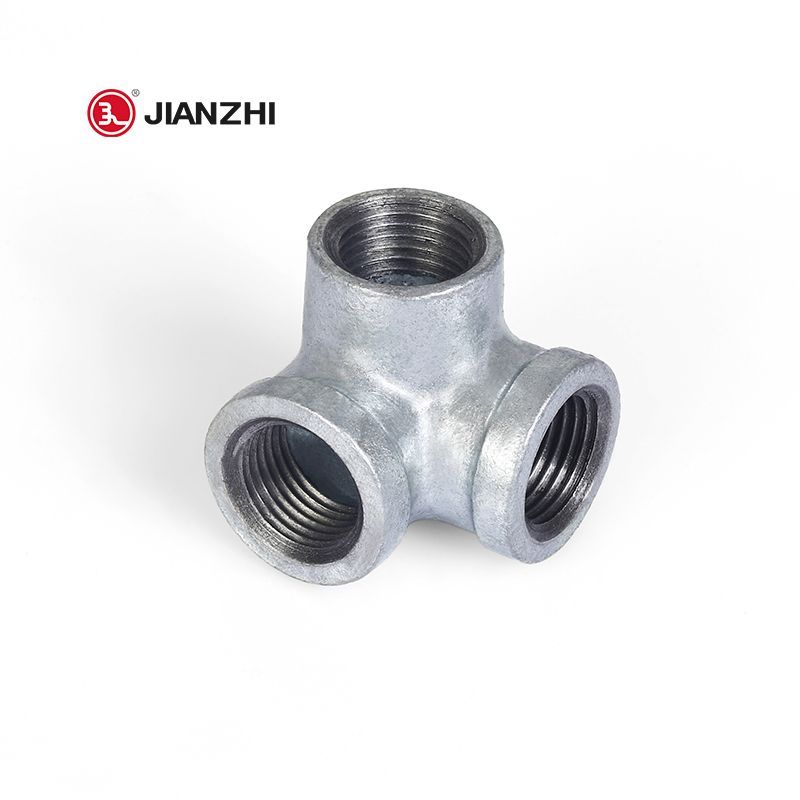

Side outlet elbow is a pipe fitting that has a three-way opening. Pipes can be easily fitted into this opening to change the direction of the flow from different liquids or gases substances. The main branch is connected to the source pipe and the two perpendicular openings are connected to the succeeding different pipe. The side outlet elbow is not for changing the flow of the fluids and gases but also can be used as construction materials for fitting the furniture pipes.

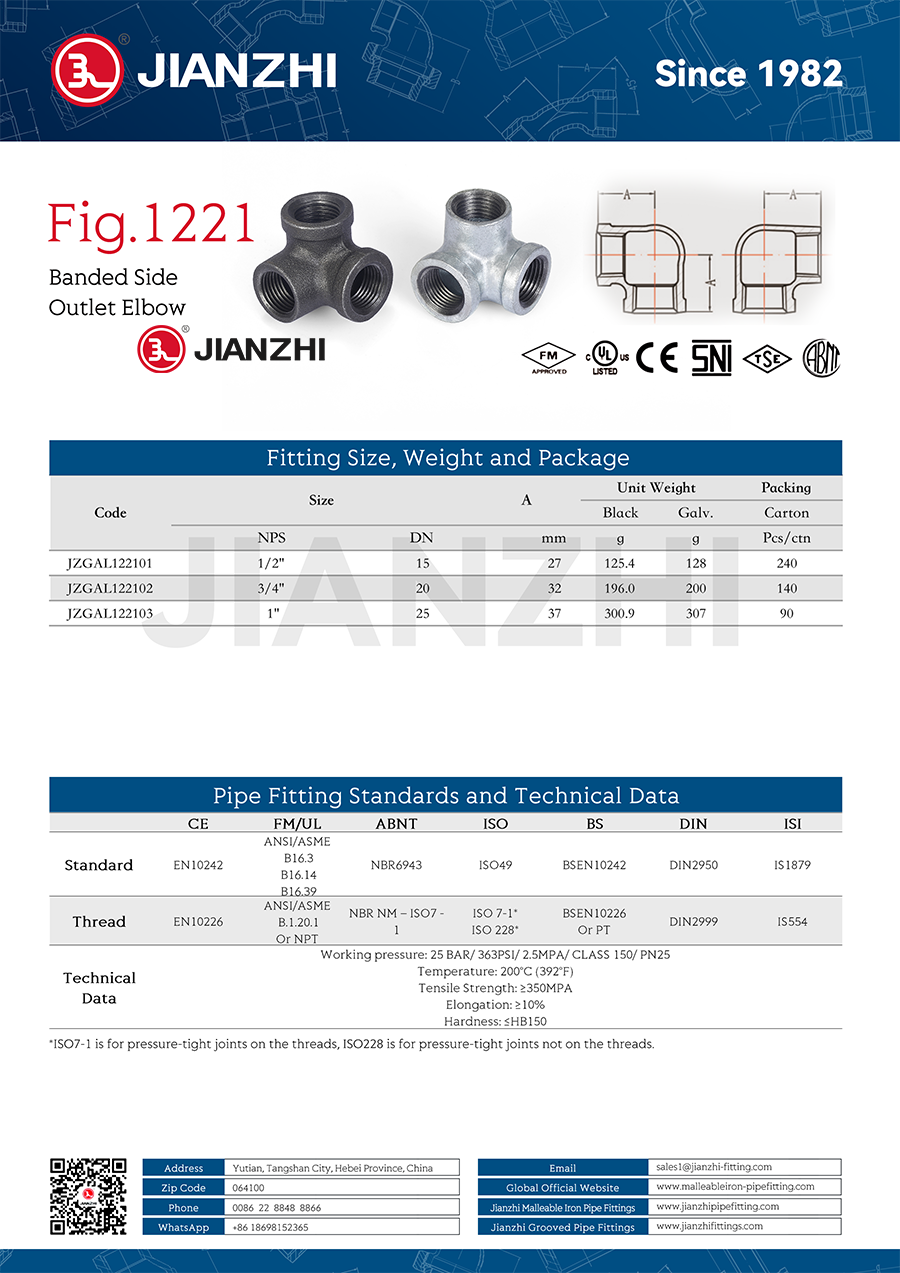

Product Dimensions

Threaded Pipe Fittings Side Outlet Elbow Fig.1221
